调用一个图片处理dll,发现loadfile不行.求指点

哇哈哈  悬赏: 5 金币

发布:2017-06-21 15:03:42 分类:问答

import win.ui;

/*DSG{{*/

mainForm = win.form(text="aardio form";right=759;bottom=469)

mainForm.add(

button={cls="button";text="打开文件";left=433;top=76;right=625;bottom=122;z=2};

button2={cls="button";text="button2";left=434;top=132;right=626;bottom=178;z=4};

edit={cls="edit";text="edit";left=266;top=30;right=628;bottom=61;edge=1;z=1};

picturebox={cls="picturebox";left=90;top=206;right=400;bottom=436;notify=1;z=3}

)

/*}}*/





import console;

import fsys;

import fsys.dlg;









var dll = ..raw.loadDll("\res\ImageWizard.dll",,"cdcel");



ImageWizardStartUp = dll.api("ImageWizardStartUp","void()") ;

LoadImageFromFile = dll.api("LoadImageFromFile","INT(STRING FileName, pointer& Image, INT Index)");





console.open();

var filename;



var imgHandle;



mainForm.button.oncommand = function(id,event){

    //mainForm.msgbox( mainForm.button.text );

    filename = fsys.dlg.open("所有文件|*.*");

    mainForm.edit.text = filename;

    ImageWizardStartUp();

    console.log(filename)

}

mainForm.button2.oncommand = function(id,event){

    console.log(LoadImageFromFile(filename,imgHandle,1))

}









mainForm.enableDpiScaling();

mainForm.show();



return win.loopMessage();

• 哇哈哈

  Time:2017-06-21 15:04:43

• 哇哈哈

  Time:2017-06-22 13:00:32
  已解决:

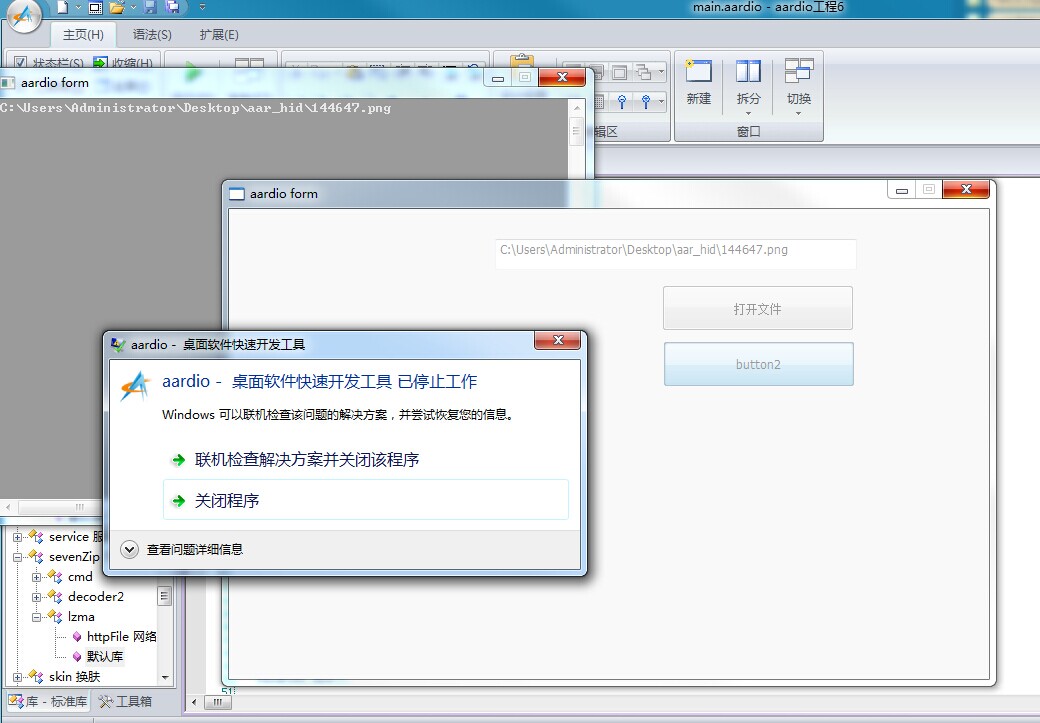

  貌似参数类型错误导致闪退




  在此感谢 qq群大神 : @kio1 提供解决办法和以下源码




  import win.ui;

  /*DSG{{*/

  mainForm = win.form(text="aardio form";right=759;bottom=469)

  mainForm.add(

  button={cls="button";text="打开文件";left=433;top=76;right=625;bottom=122;z=2};

  button2={cls="button";text="button2";left=434;top=132;right=626;bottom=178;z=4};

  edit={cls="edit";text="edit";left=266;top=30;right=628;bottom=61;edge=1;z=1};

  picturebox={cls="picturebox";left=90;top=206;right=400;bottom=436;notify=1;z=3}

  )

  /*}}*/



  import console;

  import fsys;

  import fsys.dlg;





  //重点: 如果没这个打开load就会闪退

  import win.ole;

  SysAllocString_ = Oleaut32.api("SysAllocStringA","pointer(string psz)");



  //原库dll函数声明

  var dll = ..raw.loadDll("\res\ImageWizard.dll");

  ImageWizardStartUp = dll.api("ImageWizardStartUp","void()") ;

  LoadImageFromFile = dll.api("LoadImageFromFile","INT(pointer FileName, pointer& Image, INT Index)");



  console.open();



  var filename;

  var imgHandle;



  mainForm.button.oncommand = function(id,event){

      //mainForm.msgbox( mainForm.button.text );

      filename = fsys.dlg.open("所有文件|*.*");

      mainForm.edit.text = filename;

      ImageWizardStartUp();

      console.log(filename)

  }

  mainForm.button2.oncommand = function(id,event){

  //路径有中文要进行转译先

      p = SysAllocString_(string.fromto(filename,65001,936))

      console.log(LoadImageFromFile(p,,0))

  }





  mainForm.enableDpiScaling();

  mainForm.show();



  return win.loopMessage();

• Lastheart

  Time:2017-06-22 13:35:18
  好底层，研究得好深入。
• daheian

  Time:2017-06-22 18:31:06
  好帖。
• 哇哈哈

  Time:2017-06-23 11:20:50
  上面代码增加了状态输出,当调用getwidth函数的时候发现,提示:未初始化image

  import win.ui;

  /*DSG{{*/

  mainForm = win.form(text="aardio form";right=759;bottom=469)

  mainForm.add(

  button={cls="button";text="打开文件";left=433;top=76;right=625;bottom=122;z=2};

  button2={cls="button";text="加载";left=434;top=132;right=626;bottom=178;z=4};

  button3={cls="button";text="释放";left=431;top=413;right=623;bottom=459;z=5};

  button4={cls="button";text="获取宽度";left=436;top=191;right=628;bottom=237;z=6};

  edit={cls="edit";text="edit";left=266;top=30;right=628;bottom=61;edge=1;z=1};

  picturebox={cls="picturebox";left=55;top=125;right=365;bottom=355;notify=1;z=3}

  )

  /*}}*/











  import console;

  import fsys;

  import fsys.dlg;





  //重点: 如果没这个打开load就会闪退

  import win.ole;

  SysAllocString_ = Oleaut32.api("SysAllocStringA","pointer(string psz)");

     Ok = 0

     LoadingError = 1

     ImageNotInitialized = 2

     InvalidParameter = 3

     BitCountNotSupported = 4

     UnknownImageHandle = 5

     AccessDenied = 6

     UnrecognizedSignature = 7

     OutOfMemory = 8

     GdiplusNotInitialized = 9

     ValueOverflow = 10

     UnknownImageFormat = 11

     Win32Error = 12

  status = {

      [0] = "ok";

      [1] = "LoadingError";

      [2] = "ImageNotInitialized";

      [3] = "InvalidParameter";

      [4] = "BitCountNotSupported";

      [5] = "UnknownImageHandle";

      [6] = "AccessDenied";

      [7] = "UnrecognizedSignature";

      [8] = "OutOfMemory";

      [9] = "GdiplusNotInitialized";

      [10] = "ValueOverflow";

      [11] = "UnknownImageFormat";

      [12] = "Win32Error";

  }





  //原库dll函数声明

  var dll = ..raw.loadDll("\res\ImageWizard.dll");

  ImageWizardStartUp = dll.api("ImageWizardStartUp","void()") ;

  ImageWizardShutDown = dll.api("ImageWizardShutDown","void()") ;

  //DisposeImage = dll.api("DisposeImage","INT(pointer Image)") ;

  LoadImageFromFile = dll.api("LoadImageFromFile","INT(pointer FileName, pointer& Image, INT Index)");

  GetImageWidth  = dll.api("GetImageWidth","INT(pointer Image, int& ImageWidth");

  console.open();



  var filename;

  var imgHandle;



  mainForm.button.oncommand = function(id,event){

      //mainForm.msgbox( mainForm.button.text );

      filename = fsys.dlg.open("所有文件|*.*");

      mainForm.edit.text = filename;

      ImageWizardStartUp();

      console.log(filename)

  }

  mainForm.button2.oncommand = function(id,event){

  //路径有中文要进行转译先

      p = SysAllocString_(string.fromto(filename,65001,936))

      var ret,imgHandle = LoadImageFromFile(p,,0);

      console.log(status[ret],imgHandle)

      ::SysFreeString(p);//释放

  }

  mainForm.button3.oncommand = function(id,event){

      //mainForm.msgbox( mainForm.button3.text );

      var ret = dll.DisposeImage({pointer handle = imgHandle});

      console.log(status[ret])

      ImageWizardShutDown();

  }

  mainForm.button4.oncommand = function(id,event){

      //mainForm.msgbox( mainForm.button4.text );

      var ret,width = GetImageWidth(imgHandle,0);

      console.log(status[ret],width)

  }





  mainForm.enableDpiScaling();

  mainForm.show();



  return win.loopMessage();



  显示:

  ok  pointer: 0A39C348

  ImageNotInitialized   0




  出错的含义,图片未初始化, 但是我已经初始化了啊????

  求解
